Wired | Anodized | Loaded Jazzmaster® Pickguards

AUD $300.00AUD $830.00

Prefer to see prices in a different currency? Conversion is an estimate only and all purchases are charged in Australian Dollars

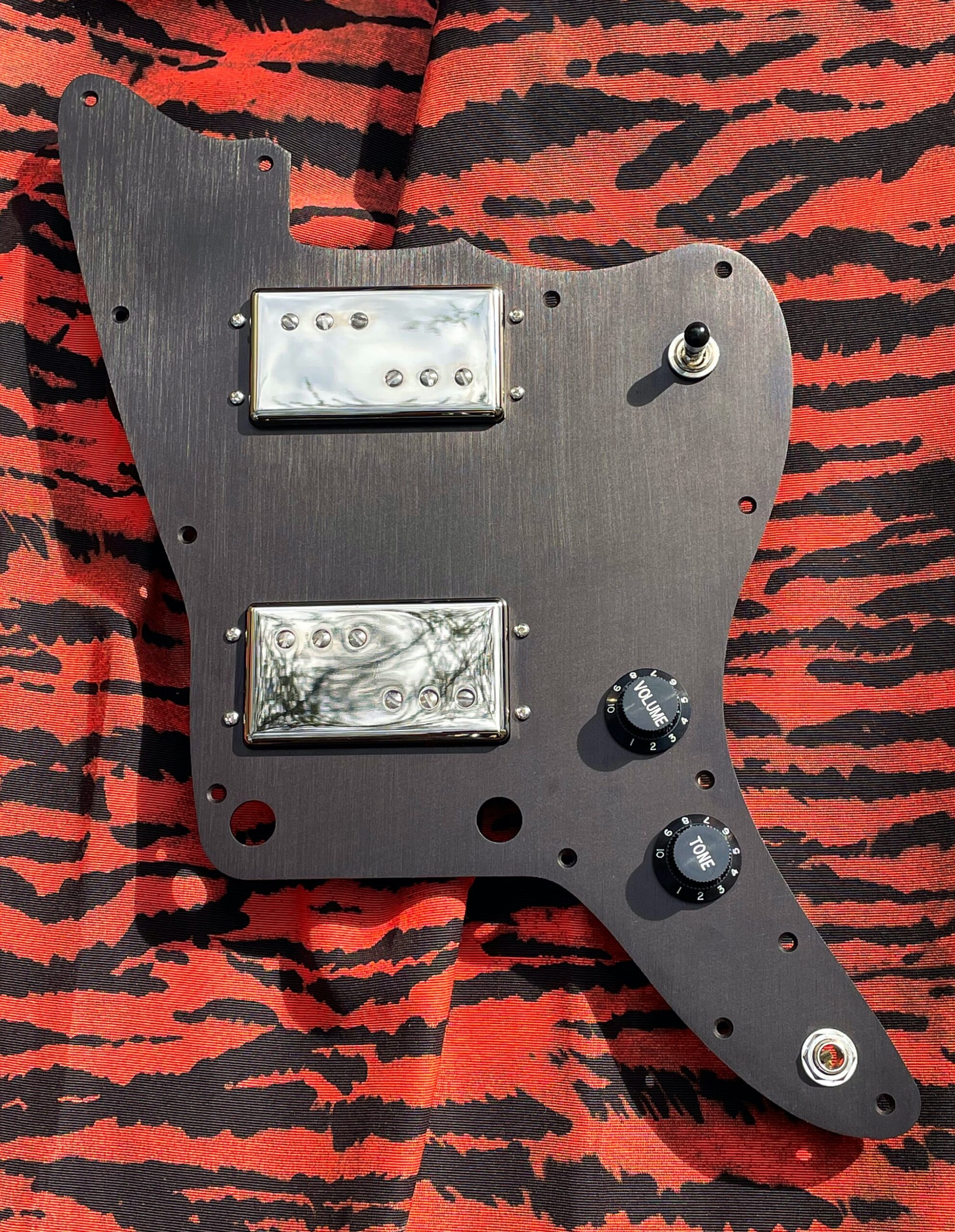

Madlove have teamed up with Herad to offer wired and loaded anodised pick guards for Jazzmaster®. Herad‘s pickguards are laser cut from 1.6mm 5005 aluminium, polished and countersunk by hand and then hard anodised. They are beautiful.

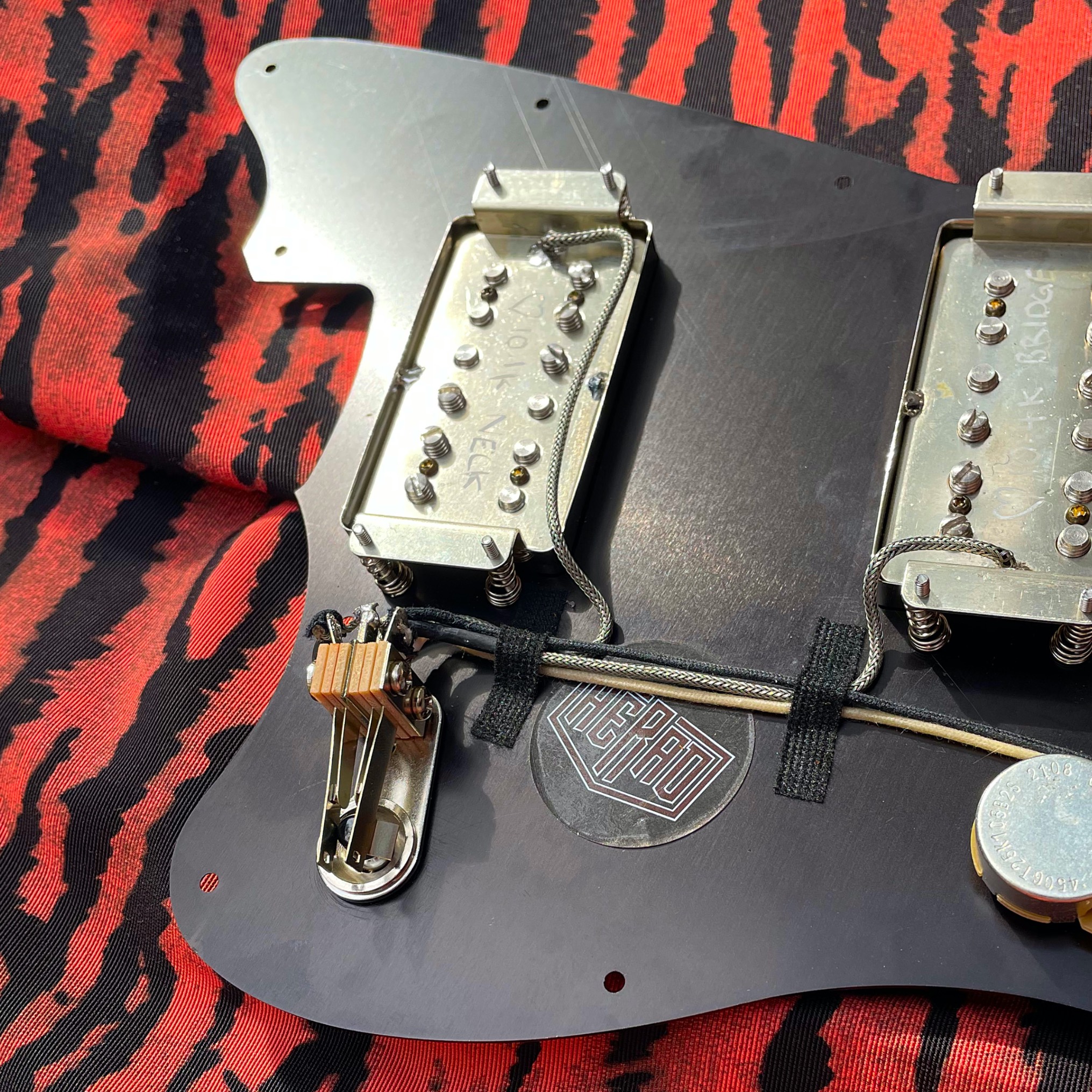

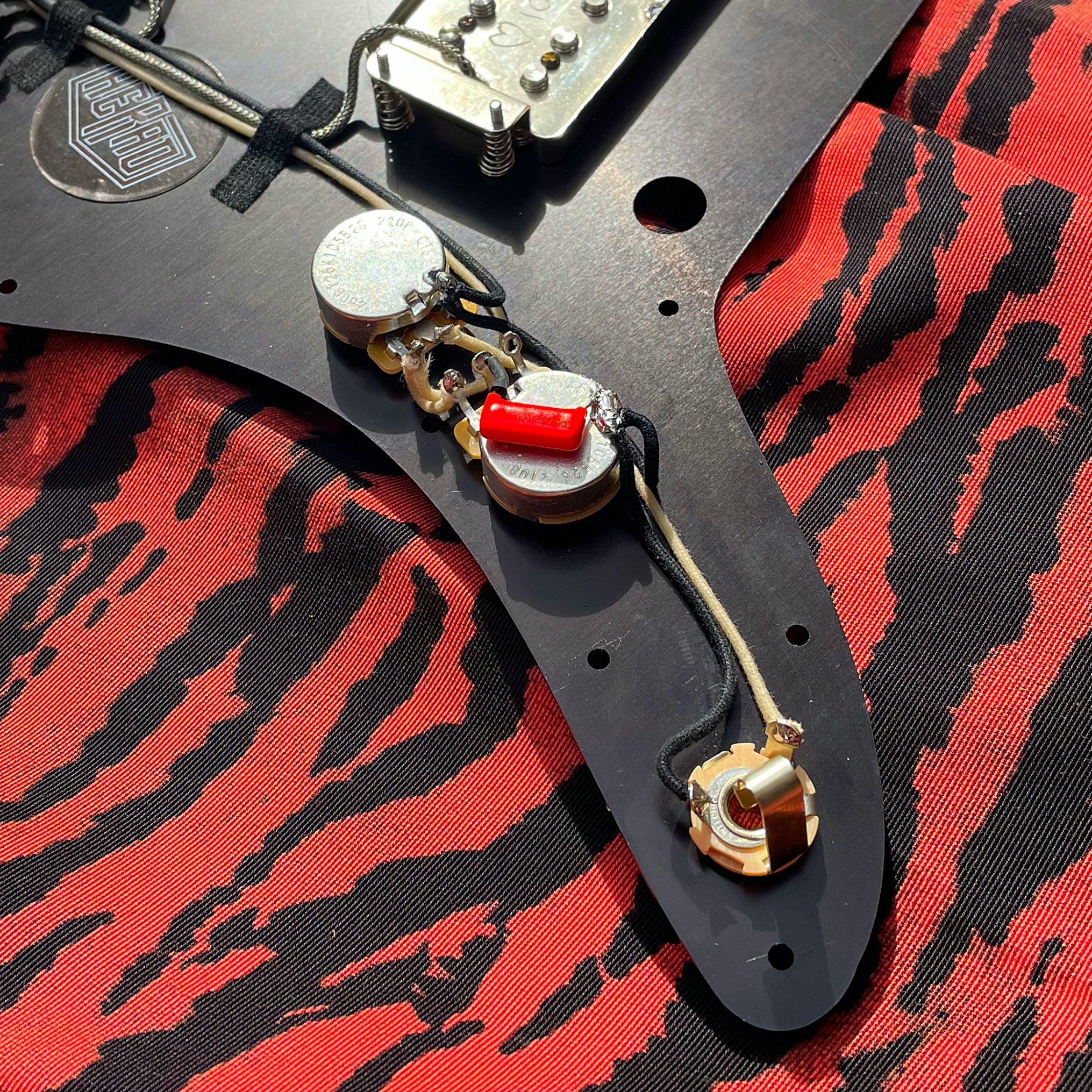

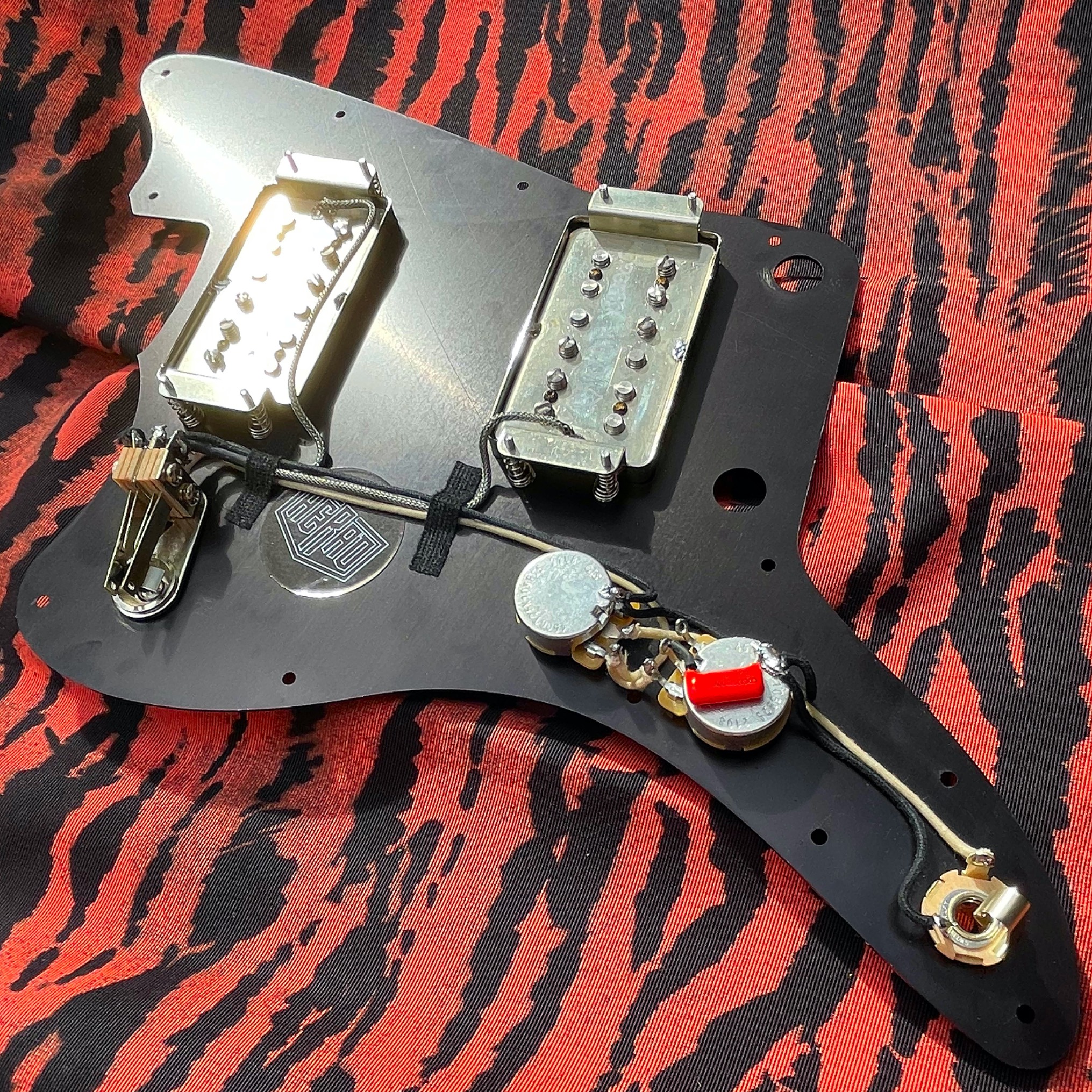

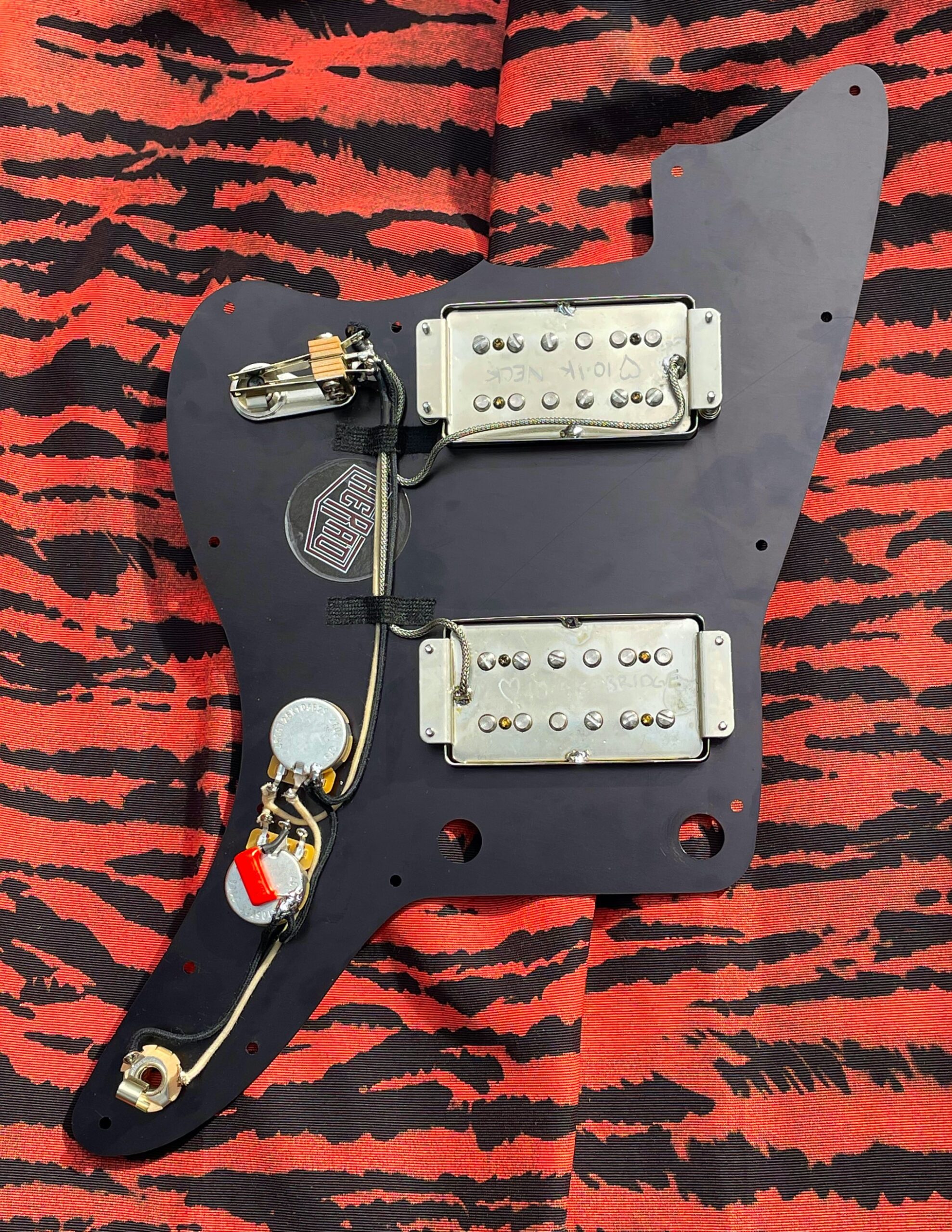

These are built to order and require a minimum three week lead time before shipping. Using high quality, no nonsense parts: Switchcraft switches & Jacks, 1Meg CTS pots for the main circuit, Orange Drop capacitors, vintage style cloth covered hookup wire. Screw locations are based on AVRI Jazzmaster®.

I use all log pots for WRHB pickups and combo linear/log for the single coils but can do otherwise, just specify in comments or contact to discuss.  For a decent primer on pot tapers: https://guitar.com/guides/essential-guide/potentiometers/

We can also add treble bleed circuit if required, just ask.

If you want something different (eg. not a Jazzmaster, different hole locations) or don’t see the options you were looking for drop us a line via the contact form. We will be able to help!

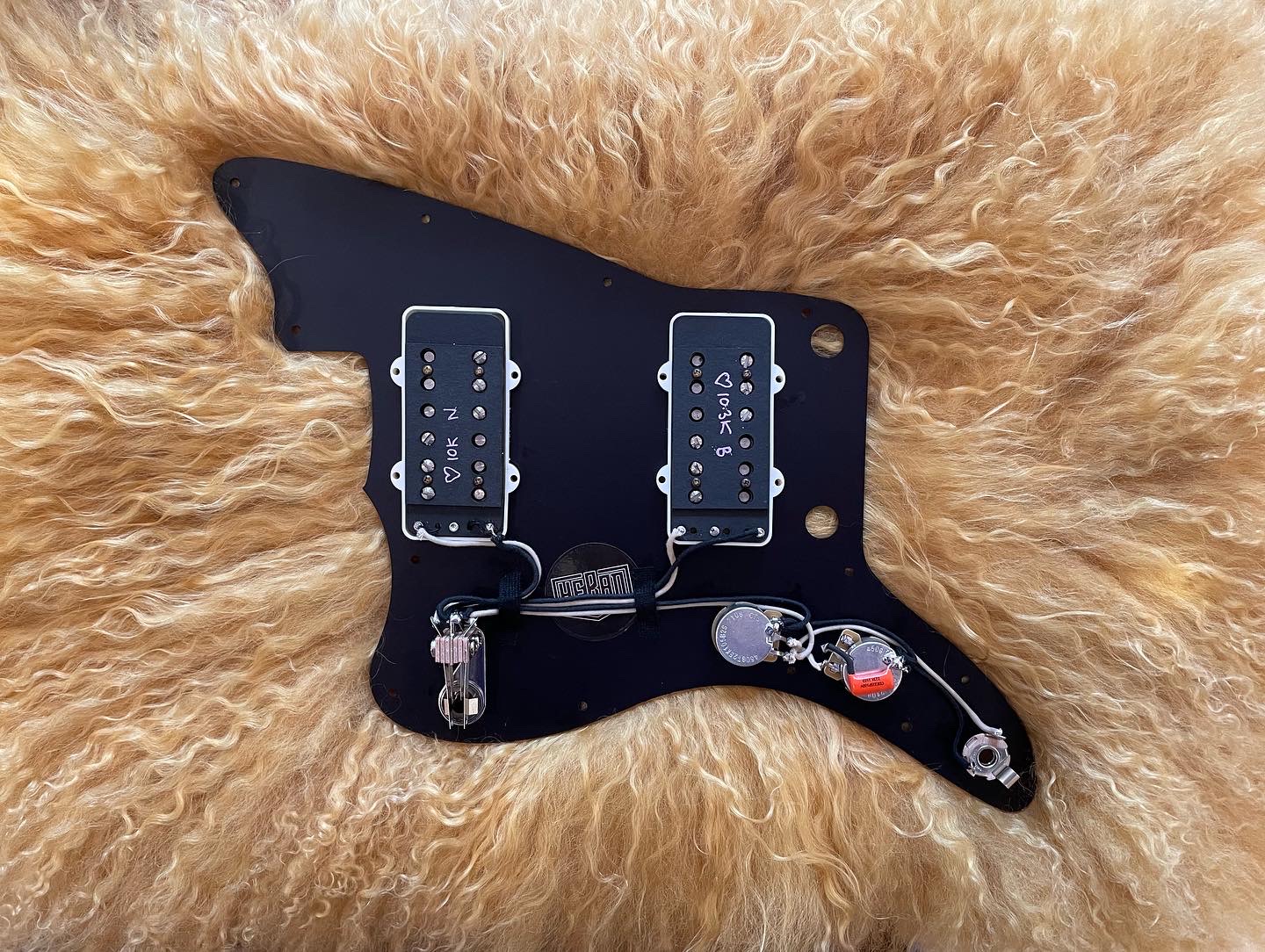

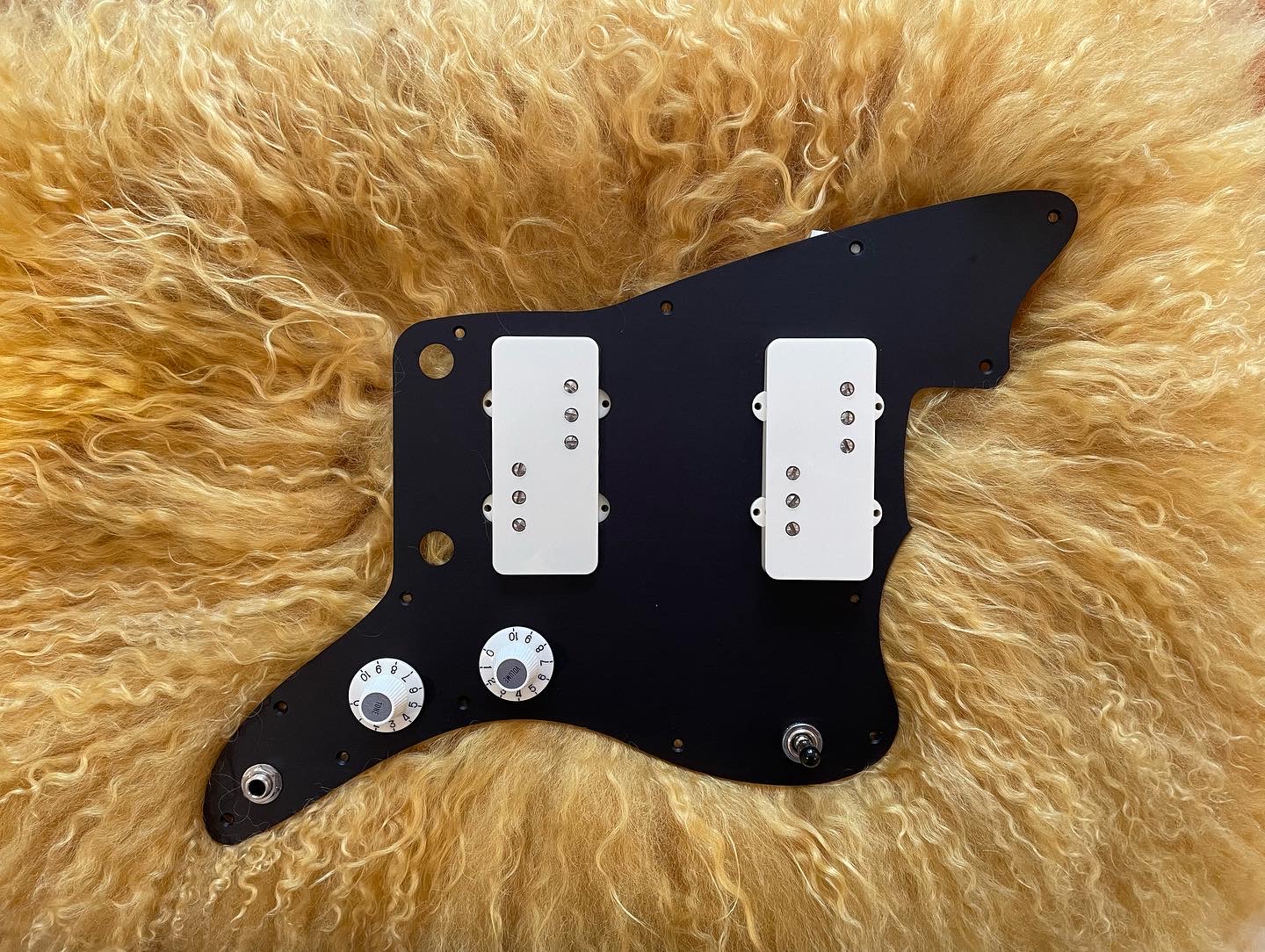

Note pictures shown are with our CuNiFe Wide Range Humbuckers and JM-WR CuNiFe Humbuckers.

Additional information

Weight 1.5 kg
Dimensions 35 × 25 × 10 cm
