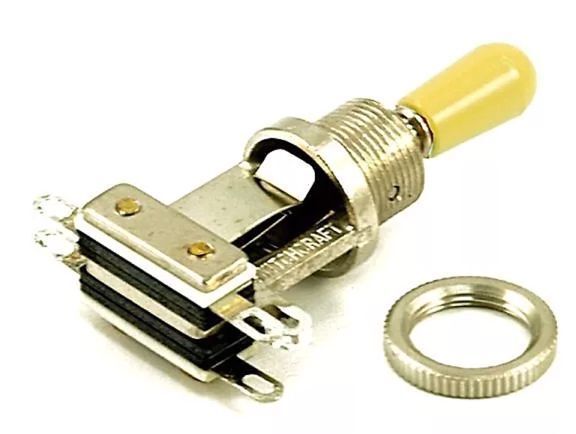

Switchcraft 3 Position Short Frame Toggle Switch with black or cream tip

AUD $49.00

Prefer to see prices in a different currency? Conversion is an estimate only and all purchases are charged in Australian Dollars

SKU: N/A Categories: , ,


Available with cream or black tip (other options available on request). This short frame Switchcraft® straight toggle switch is a blend between the long switch for Les Paul® guitars and the right angle used in SG’s®, Jazzmaster etc and is used either where body thickness will not accommodate the longer switch or where a more compact switch design is desired.


  • Contact Ratings: Fine silver contacts rated at 3A, 300W maximum AC non-inductive load standard.
  • Leakage Resistance: 1,000 MW or greater
  • Dielectric Strength: 250 VDC


  • Frame: Steel, plated
  • Bushing and Shaft: Copper alloy, plated
  • Springs: Copper alloy
  • Knob: Molded thermoplastic
  • Mounting Hardware: Knurled copper alloy locknut T10711, supplied
  • Insulation: Rigid plastic spacers with plastic tubing through stack. Rigid plastic and/or thermoplastic lifters. Thermoplastic cam on actuator end

Additional information

Weight N/A
Dimensions N/A
